1500 Pound Capacity:
Model # 82320,
List Price $836.92,
Our Price $585.85
Lift - 4-3/4", Length - 43 1/2",
Width - 39 1/2", Height - 35".
Shipping wt. 175 lbs.

3 Swivel casters,
Adjustable rear locking caster to match spindle angle,
6 foot chain to secure wheels to dolly during
removal and transporting.

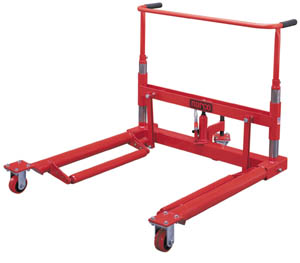

1 Ton Capacity:
MODEL 82300C,
List Price $1,382.56,
Our Price $967.79
Lift - 7-1/2", Length - 50-1/2",
Width - 44-1/2", Height - 39".
Shipping wt. 207 lbs.

1 Swivel caster, ridgid front wheels,
3 1/4" travel adjustment on rear locking caster
to match spindle angle,
ball bearing rollers for easy rotating.

MODEL 82301C,
List Price $1,396.92,
Our Price $977.85
Same as above but with four casters
for easier side-to-side maneuverability.

1/2 Ton Capacity - TILTING
MODEL 82303A,
List Price $1,589.74,
Our Price $1,112.82
Lift - 5-3/4", Length - 39-1/2",
Width - 41", Height - 33-3/4".
Shipping wt. 193 lbs.

Lift arm tilts 45 degrees for
easy wheel installation.
4 Swivel casters,
3 1/4" travel adjustment on rear locking casters
to match spindle angle,
ball bearing rollers for easy rotating.

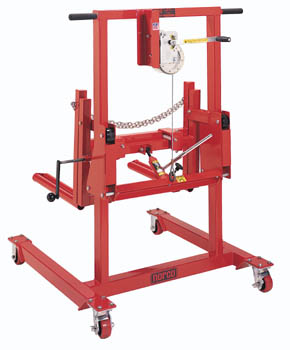

1/2 Ton High Lift
MODEL 82302B,
List Price $2,315.90,
Our Price $1,621.13

Lift Travel - 3" low to 41" high, Length - 45-3/4",
Width - 43-3/4", Height - 62".
Shipping wt. 315 lbs.

Winch lifts load while hydraulic jack tilts
to accomodate spindle.
7-1/2" side-to-side adjustment.
2 rear swivel locking casters, ridgid front wheels,
ball bearing rollers for easy rotating.
